Product Description

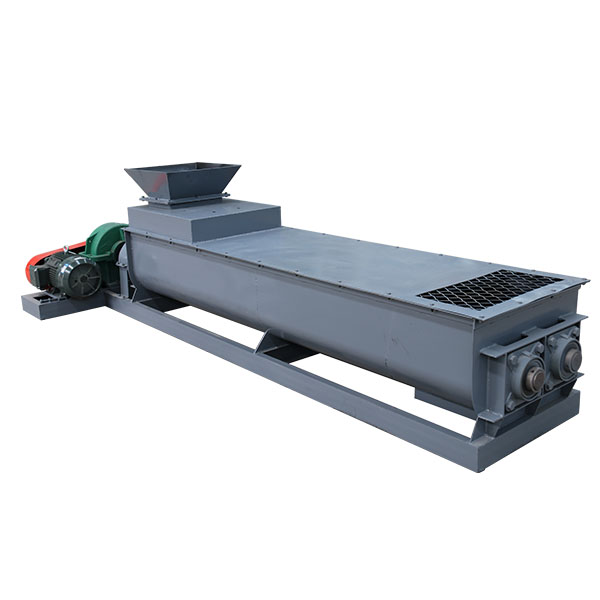

Double shaft mixer is a device that uses two sets of shafts with spiral blades to rotate relative to each other and adds water to wet and stir the powder material, achieving controllable humidity. Stir the material thoroughly. it adopts a cycloidal pinwheel reducer or a motor driven by a belt wheel to drive the operation of the spiral shaft, which operates smoothly and has low noise. The material flow direction is from the top of the humidification conveyor to the bottom, and the material flow direction is reasonable, making it easy to transport
Application
This equipment is mainly suitable for humidifying and mixing raw materials in the fertilizer industry.
Technical Data
| Model | Power/kw | Capacity/tph | RPM | Size/mm |
| SFD400 | 11kw | 10-20 | 52 | 4113*1300*1053 |
| SFD500 | 22kw | 20-30 | 52 | 5180*1500*1100 |
| SFD600 | 37kw | 30-50 | 52 | 5600*1686*1390 |
| SFD1000 | 75kw | 60-80 | 50 | 6685*3050*1350 |
