Product Description
Vertical mixer is a new type of mixer. Vertical mixer is a new type of mixer. It is mainly used in the blending process in the organic fertilizer and compound fertilizer production.

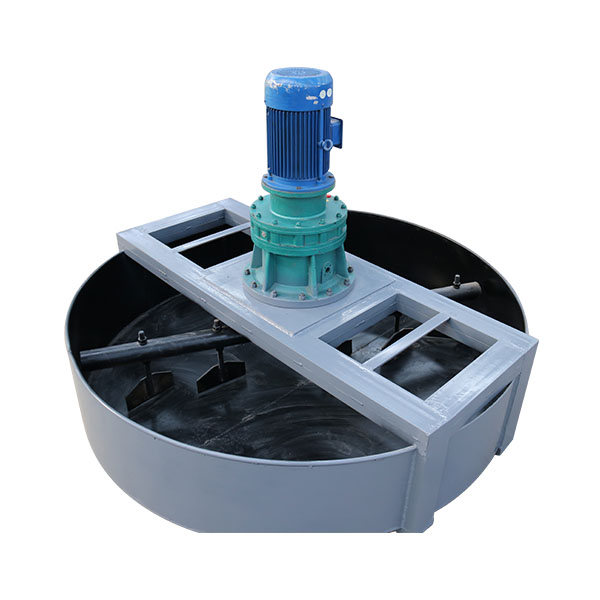

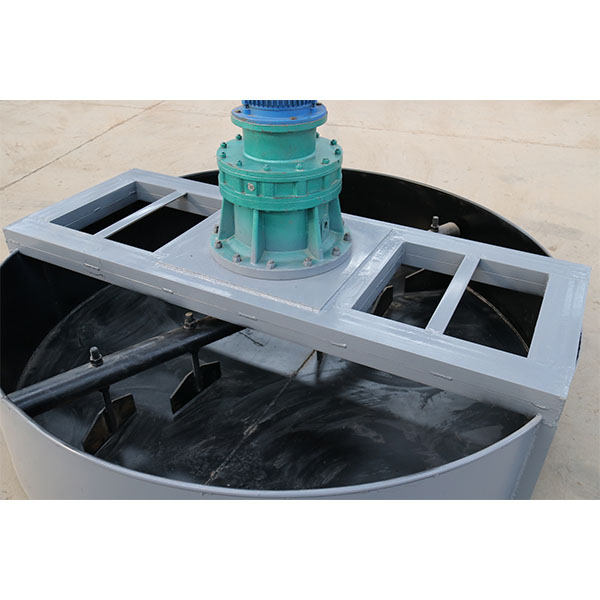

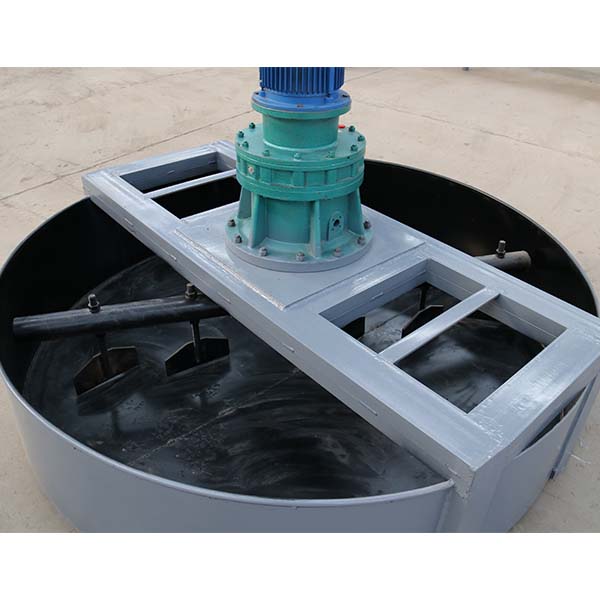

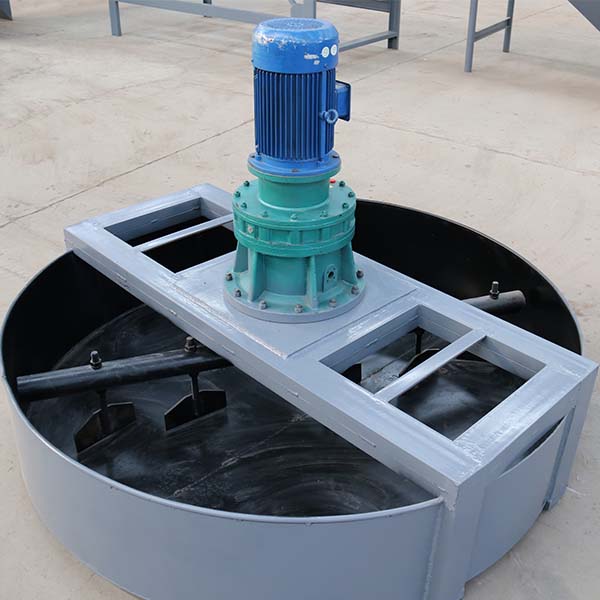

It is composed of a mixing plate, a feed outlet, a mixing arm, a rack, a gearbox and a transmission mechanism. This machine is characterized by the driving shaft of the reducer, which makes it run, the mixing shaft has a fixed mixing blade, and the mixing shaft drives the mixing blade to mix the material fully. This mixer has the advantages of long life, energy saving, small volume, fast mixing speed, and continuous work.
Technical Data
| Model | Power/kw | Capacity/tph | RPM | Size/mm | Weight/kg |
| SFL1500 | 5.5kw | 2-3 | 12 | 1500*1500*1510 | 1220 |
| SFL1800 | 7.5kw | 3-5 | 10.5 | 1800*1800*1520 | 1430 |
| SFL2000 | 11kw | 6-8 | 10.5 | 2000*2000*1600 | 1600 |
| SFL2200 | 15kw | 8-11 | 10.5 | 2200*2200*1620 | 1700 |
