Product Description

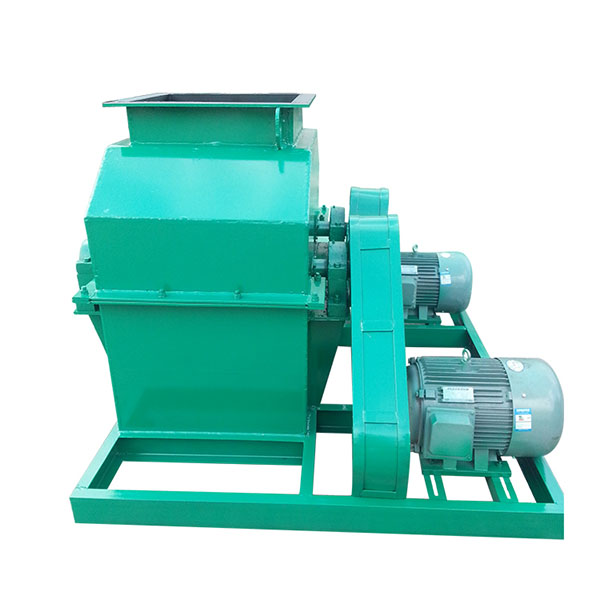

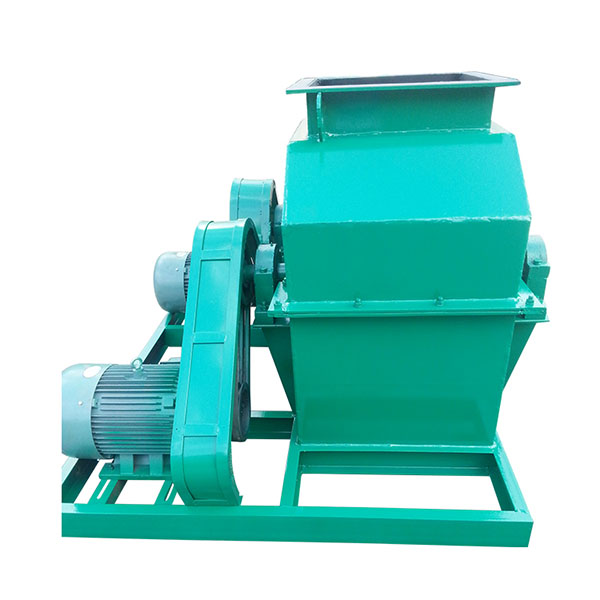

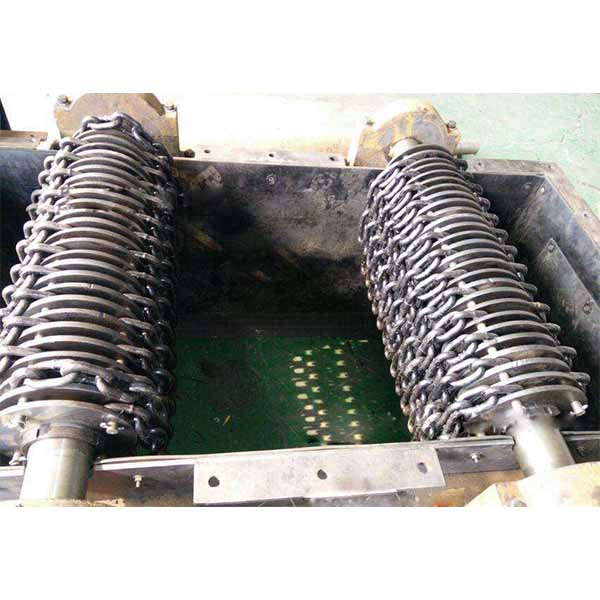

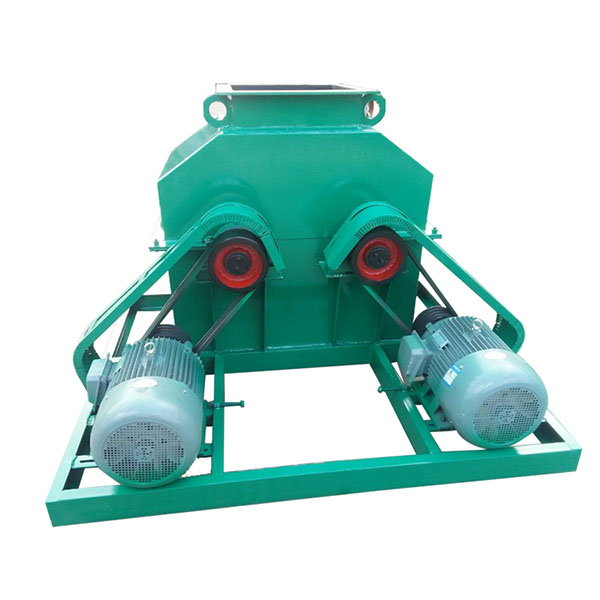

Double shaft chain crusher is suitable for crushing block substances in the production of compound and organic fertilizers and is also widely used in industries such as chemical, building materials, and mining. The machine uses high-strength wear-resistant hard alloy chain plates with synchronous speed during the crushing process. The inlet and outlet design is reasonable, the crushed materials are uniform, not easy to stick to walls, and easy to clean. Crush various block fertilizers and other medium hardness block materials.
Technical Data
| Model | Power/kw | Capacity/tph | Max input size | Size after crushed |
| SFL600 | 11kw+11kw | 7-12 | ≤60mm | ≤0.7mm |
| SFL800 | 22kw+22kw | 13-17 | ≤60mm | ≤0.7mm |
| SFL1000 | 30kw+30kw | 18-25 | ≤60mm | ≤0.7mm |
Double Shaft Chain Crusher Advantage
- This crusher adopts a column pin coupling direct transmission, with hammer plates arranged symmetrically. The rotor has been balanced and verified and can work in reverse.
- The operation door is equipped with an interlock device to ensure that it cannot be opened during machine operation.
- The design of opening doors on both sides makes it easy to replace the screen and has low maintenance costs.
- This machine has a reasonable structure and is sturdy and durable; Easy to install and operate; has low vibration and high efficiency.
