Product Description

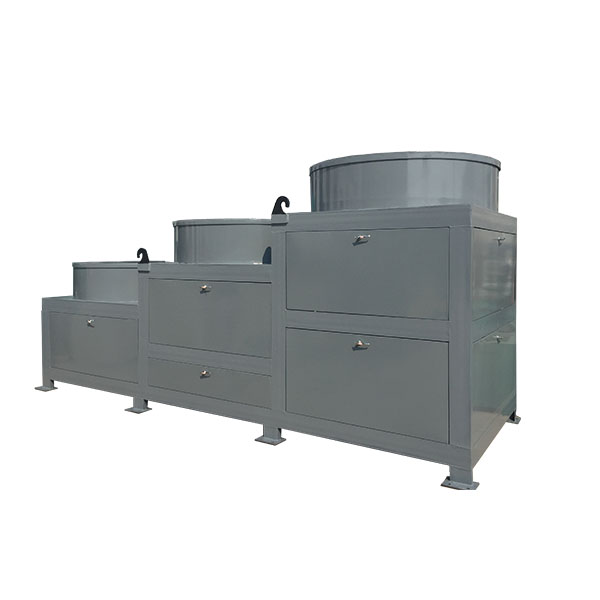

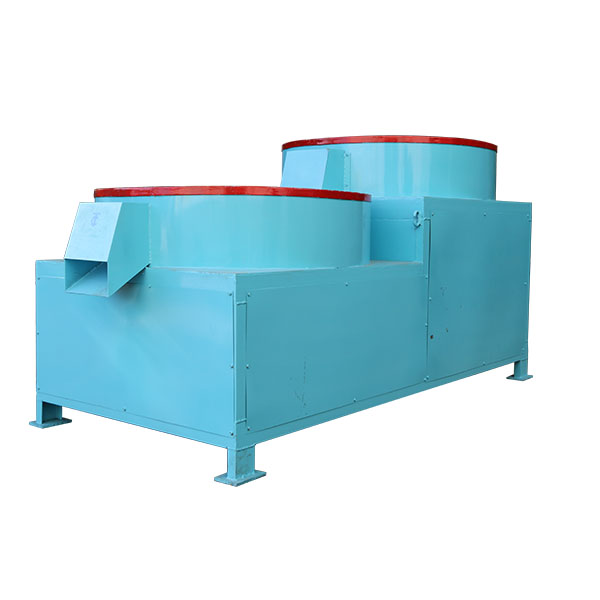

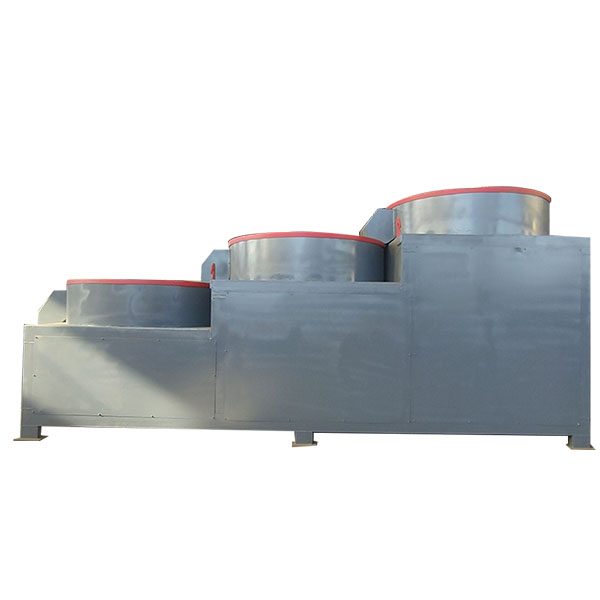

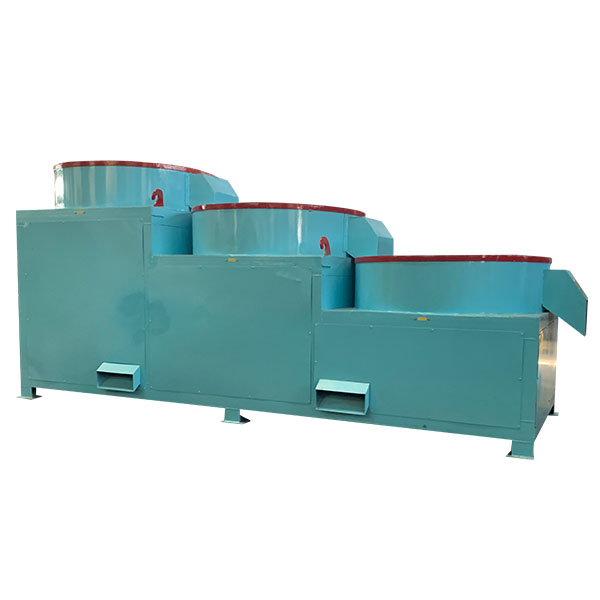

Round shape machines, which are also called polishing machines, can be used in conjunction with organic fertilizer granulators, pan granulators, flat die granulators,and other equipments in the fertilizer production process, to remove the shape edges or make the granules or pellets more strong and beautiful. It is composed of two or three throwing cylinders arranged in sequence. After rounding, the finished product particles are discharged from the discharge port. The finished product particles have the same particle size, which is round and smooth with a capacity as high as 98%. A small amount of fertilizer falls from the edge gap of the round-shaped machine and flows out along the waste port. The machine operates simply, with low power and noise.
Technical Data
| Model | Pan dia.(mm) | RPM | granulation rate | Power(kw) | Capacity(tph) |
| SFR800-2 | 800 | 296 | ≥97% | 4/4 | 1-3 |
| SFR1000-2 | 1000 | 298 | ≥97% | 5.5/5.5 | 3-5 |
| SFR1200-2 | 1200 | 302 | ≥97% | 7.5/7.5 | 5-8 |
| SFR1200-3 | 1200 | 305 | ≥97% | 7.5/7.5/7.5 | 8-12 |
| SFR1500-2 | 1500 | 309 | ≥97% | 11/11 | 12-16 |
| SFR1500-3 | 1500 | 311 | ≥97% | 11/11/11 | 16-20 |
