Product Description

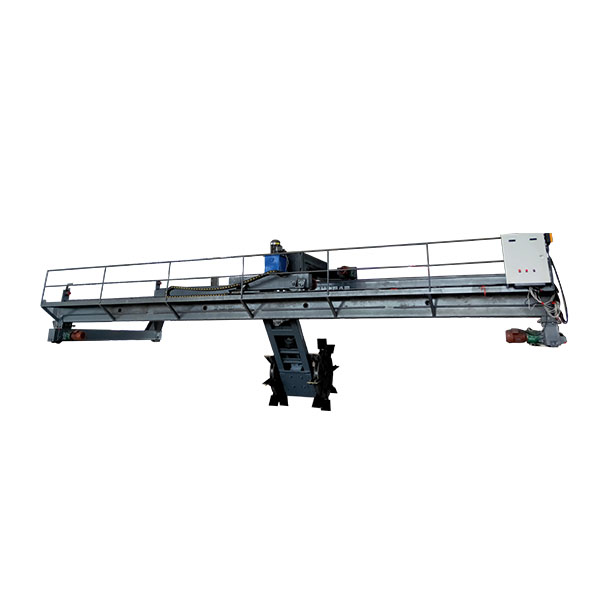

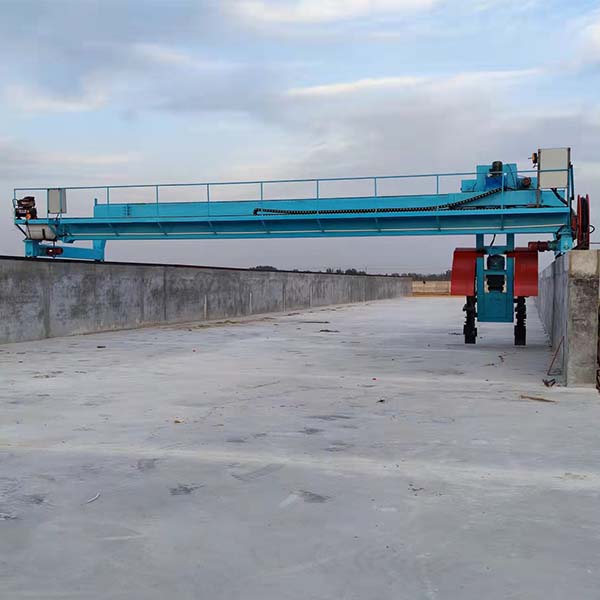

Roulette turner machine, which is also called wheel type compost turner, is suitable for the fermentation and flipping of organic waste such as large-span and high-depth livestock and poultry manure, sludge garbage, sugar factory filter mud, residue cake, and straw sawdust.

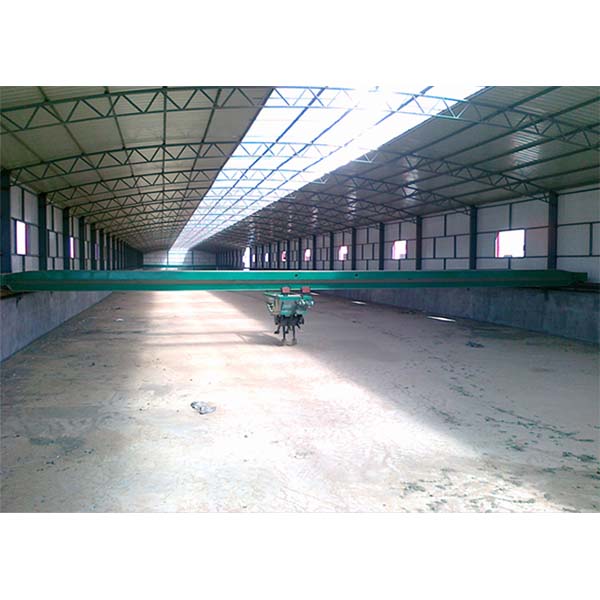

It is widely used in the fermentation and moisture removal operations of organic fertilizer plants, sludge garbage plants, horticultural fields, and mushroom cultivation plants.
Technical Data
| Model | Main power | Walking power | Walking speed | Turning width | Turning depth |
| SFRT12m | 37 | 4*2 | 3-15m/m | 12m | 1.5-2m |
| SFRT15m | 37 | 4*2 | 3-15m/m | 15m | 1.5-2m |
| SFRT20m | 45 | 5.5*2 | 3-15m/m | 20m | 1.5-2m |
| SFRT22m | 45 | 5.5*2 | 3-15m/m | 22m | 1.5-2m |
Roulette Turner Machine Advantage
- High turning depth: Its flipping depth can reach 1.5-2 meters.
- The turning span is large: its flipping width can reach 30 meters.
- Low energy consumption of turning and throwing: By adopting a high-efficiency energy-saving transmission mechanism, the energy consumption of flipping and throwing equipment is reduced by 70% compared to traditional flipping and throwing equipment under the same workload.

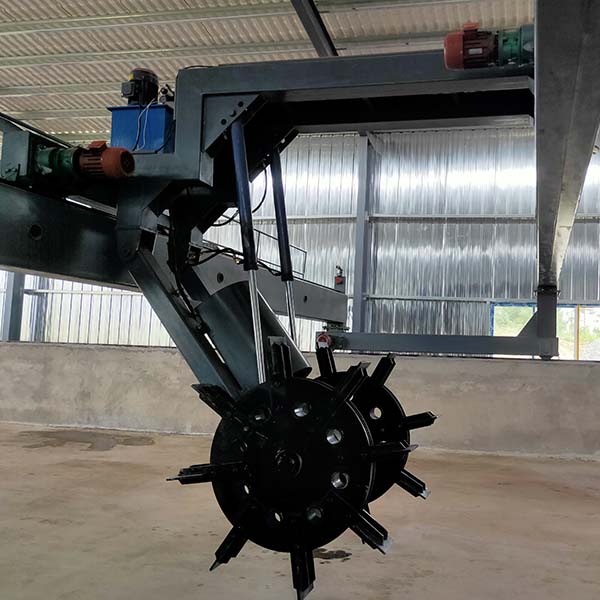

- Turning without dead angles: The wheel disc is symmetrically flipped, and there is no dead angle flipping under the displacement of the speed-controlled displacement car.
- High degree of automation: equipped with a fully automated electrical control system, no personnel are required to operate the equipment during operation.
