SOLUTION
Organic-inorganic compound fertilizer is a type of compound fertilizer that contains both organic matter and an appropriate amount of chemical fertilizer. It is a commercial fertilizer granulated or directly mixed after harmless and effective treatment of organic materials such as feces and peat through microbial fermentation, and adding an appropriate amount of fertilizer, humic acid, amino acid or beneficial microbial bacteria.

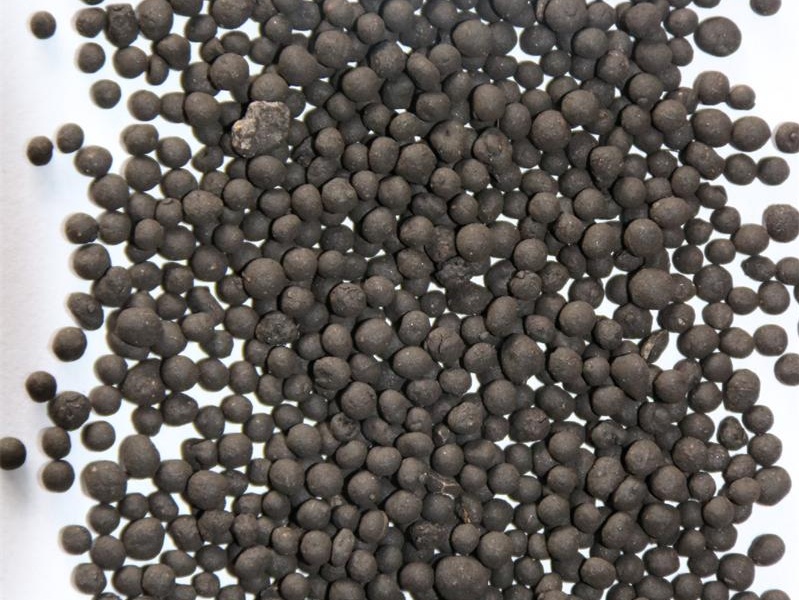

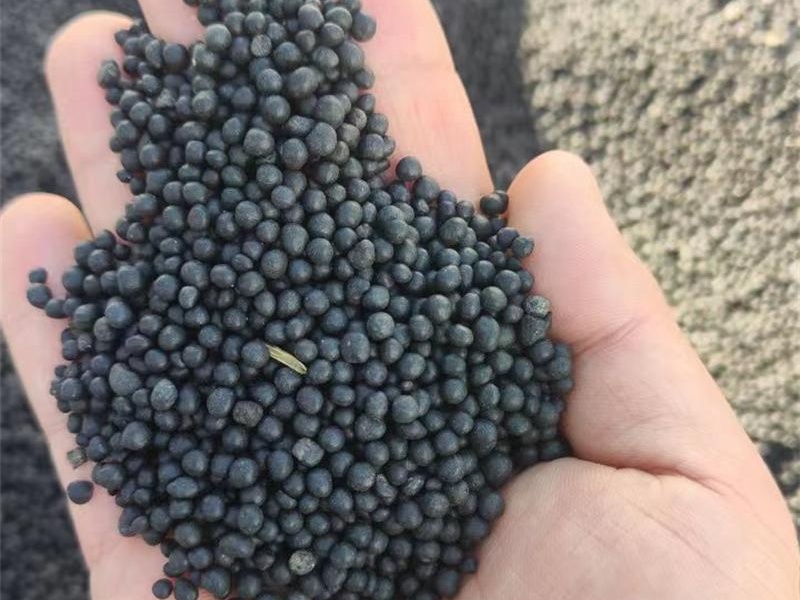

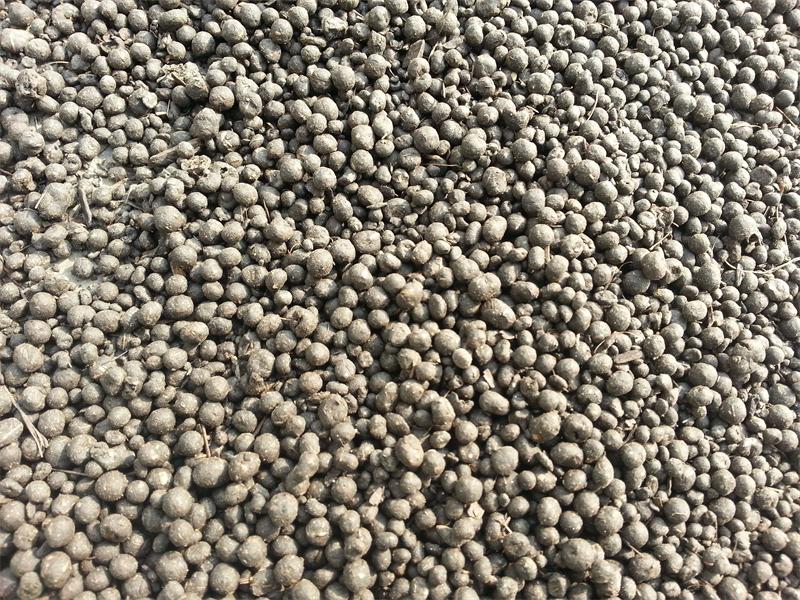

Appearance: Granular or strip-shaped product, without mechanical impurities.
| Item | Technical indicators | ||
| Level I | Level II | Level III | |
| Total nutrients（N+P2O5+K2O） | ≥15% | ≥25% | ≥30% |
| Organic matter(OM) content(based on dry basis) | ≥20% | ≥15% | ≥8% |
| Humic acid content | N/M | N/M | ≥5% |
| Moisture | ≤12% | ≤12% | ≤8% |
| PH value | 3.0-8.0 | 3.0-8.0 | 3.0-8.0 |
| Size(1-4.75mm or 3.35-5.60mm) | ≥70% | ≥70% | ≥70% |
| No. | Processes | Machines | Function of machines |
| 1 | Fermentation and maturation process | Fermentation machine | Mix and blend raw material evenly during fermentation and maturation |
| 2 | Crushing process | Loader hopper | Feed compost into crushing machine evenly |
| Crushing machine | Crush matured compost to powder. | ||
| 3 | Dosing process | Automatic dosing system | Ratio raw materials by formula |
| 4 | Mixing and blending process | Mixer/Blender | Mix compost or If necessary. add water, beneficial bacteria, or other micro-elements evenly |

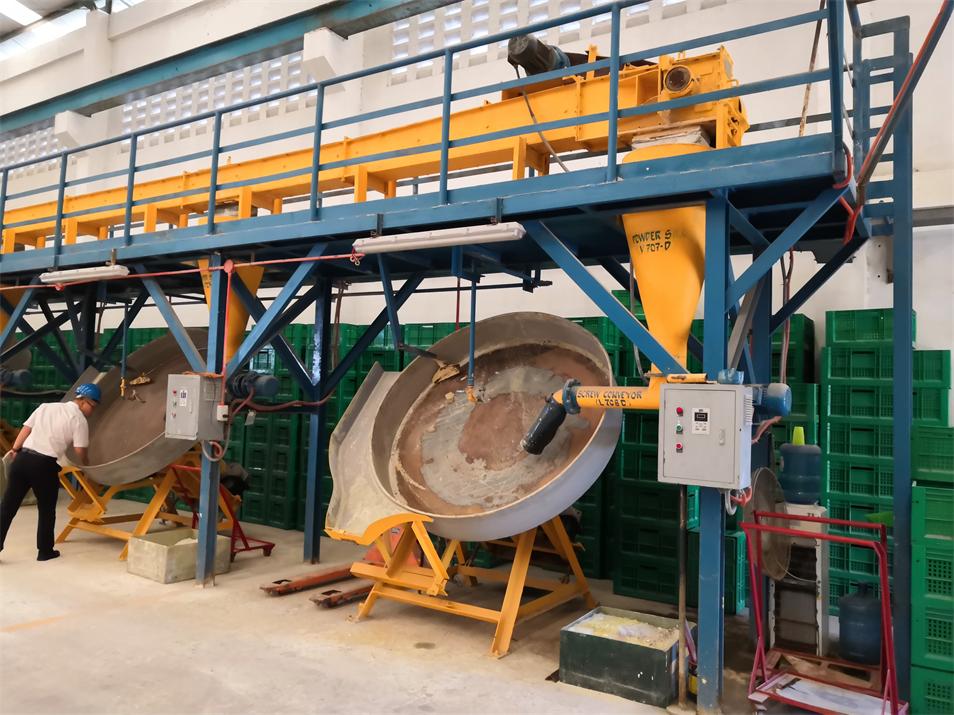

| 5 | Granulation process | Feeding machine | Feed mixed powder into granulating machine evenly |

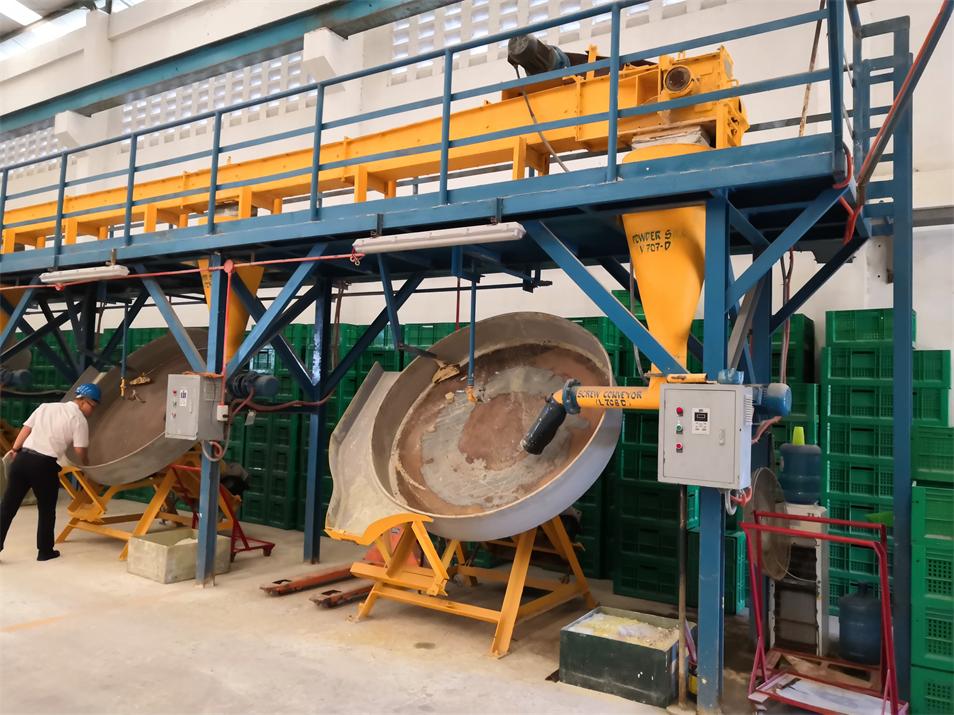

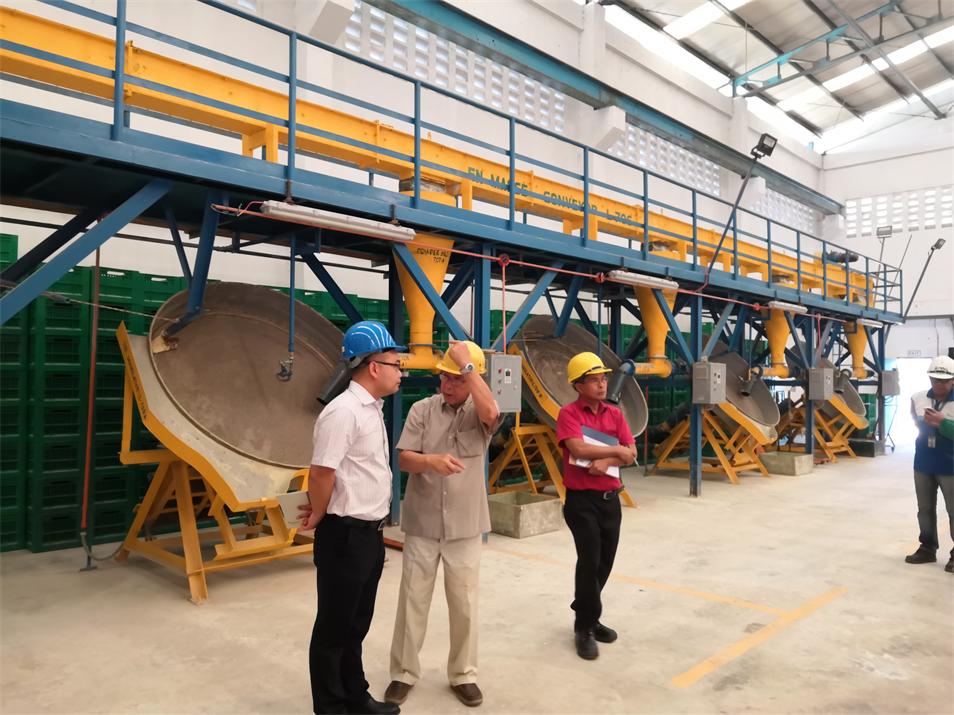

| Granulating machine | Make mixed powder into fertilizer granules | ||

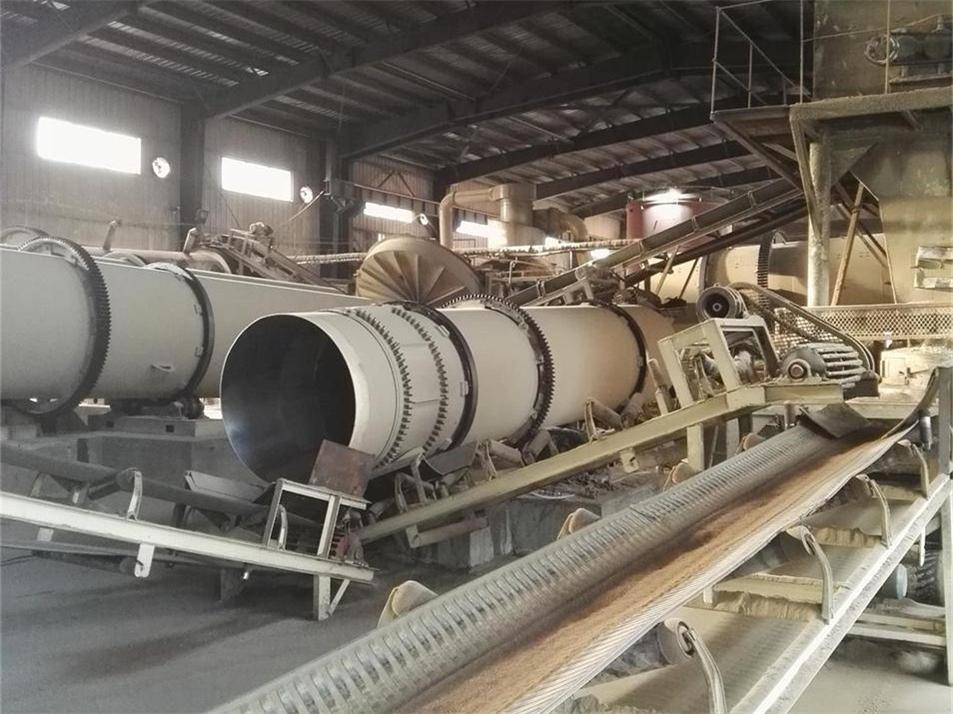

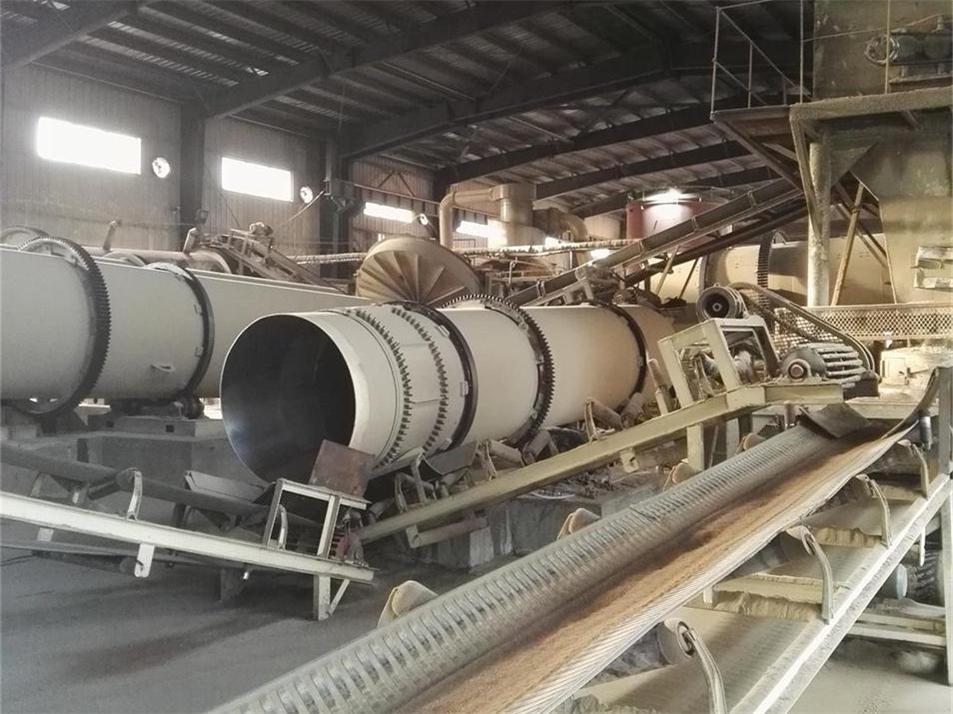

| 6 | Drying process | Rotary dryer | Dry fertilizer granules to low moisture by hot air |
| Hot furnace | Generate hot air to dryer | ||
| cyclone | collect dust from dryer | ||
| 7 | cooling process | Rotary cooler | cool fertilizer granules to normal temperature |
| cyclone | collect dust from cooler | ||
| 8 | Screening process | Screening machine | screen out required size from fertilizer granules |
| 9 | Coating process | Rotary coating machine | Coat color, anti-blocking agent, micro elements etc on fertilizer granules |
| 10 | Packaging process | Air compressor | Generate air source to packaging machine |
| Packaging machine | Package fertilizer granules into bags | ||
| 11 | Delivering process | Belt conveyor | Connect each machine, and deliver the powder or granules to next process |
| 12 | Controlling process | PLC controller | Control all machines |
